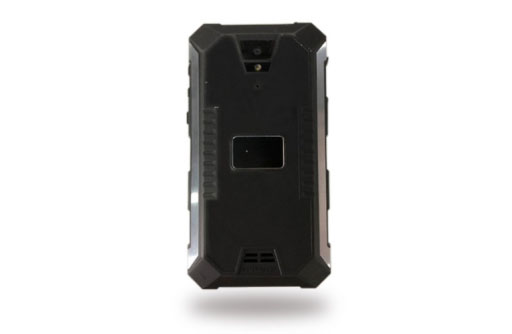

Intelligent terminal for motor vehicle inspection

Product introduction

Handheld terminal installed with relevant mobile application software, which is specially used for motor vehicle inspection or motor vehicle safety technical inspection.

Research and development basis

1. GA/T 1434-2017 General Technical Requirements for Intelligent Terminals for Motor Vehicle Inspection.

2,GB 21861-2014 Motor Vehicle Safety Technical Inspection Items and Methods

3,GA801-2014 "Motor Vehicle Inspection Work Regulations"

Technical characteristics

1. The technical requirements of power adapter and charging/data interface meet the relevant requirements of GB/T 32638.

2. The battery of the intelligent terminal supports the equipment to work continuously for 4 h and stand by for 24 h respectively.

3, waterproof and anti-fall, keyboard, switch, button and other flexible and reliable operation control, clear and definite logo.

4, with front and rear camera function, the main resolution of image imaging is not less than 5 million pixels, and the video resolution is not less than 400,000 pixels.

5, screen touch operation, support handwriting input and drop-down box selection and other input methods.

6, with one-dimensional bar code and two-dimensional bar code reading function.

7. Intelligent terminals provide integrity and confidentiality protection for user data such as photo, video, voice and location during storage, transmission and processing.

8. The operating system of the intelligent terminal is safe, and it can monitor the modification and change of the automatic startup program.

9. The communication interface of intelligent terminal is secure, which supports the control of I/O interface and prevents unauthorized mobile devices from using it.

10. It has Beidou satellite positioning function, with positioning accuracy within 10m.

technical parameter
