Dingli (Sino-German joint venture) adopts German imported parts and professional hydraulic technology. This hydraulic shear has the function of cutting off and shearing metal structures, pipelines, special-shaped steel and steel plates.
Product features
Dingli (Sino-German joint venture) adopts German imported parts and professional hydraulic technology. This hydraulic shear has the function of cutting off and shearing metal structures, pipelines, special-shaped steel and steel plates.
Made of high-strength light alloy, it has high reliability and good fatigue strength performance, which prolongs the service life of the product and its design concept and performance test results.
Ergonomic geometric blade design makes the dismantling efficiency of scrapped cars higher. Shear splash prevention and automatic reset of manual reversing valve make the operation safer.
The tail end of the tool has a compact design without tail pipe, and the interface adopts mechanical thread rotary single interface connection, which can be easily connected even with gloves, and the connection is safe and reliable.
Technical parameters of hydraulic shear
| serial number | project | parameter | unit |
| 1 | working pressure | 700 | 巴 |
| 2 | shear force | 642 | kN |
| 3 | Shear round steel diameter (Q235 material)Φ | 33 | mm |
| 4 | Shear steel plate thickness | 10 | mm |
| 5 | Opening distance | 145 | mm |
| 6 | weight | 13.8 | kg |
| 7 | outline dimension | 745*220*170 | mm |
| 8 | NFPA shear grade | A7/B8/C6/D7/E7 | |
| 9 | Pass the certification | NFPA、EN和GB |

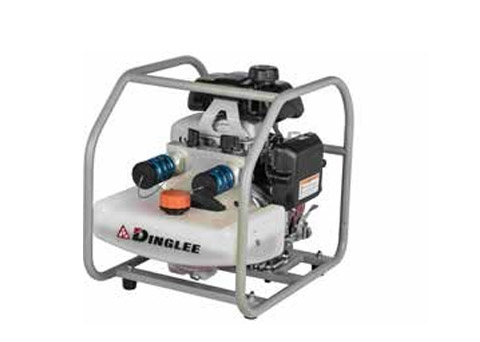

Technical parameters of motor pump
| serial number | project | parameter | unit |
| 1 | working pressure | 700 | 巴 |
| 2 | engine power | 2.2 | kW |
| 3 | working speed | 3000-3800 | rpm |
| 4 | High pressure flow | 0.67 | L/min |
| 5 | Low pressure flow | 2.8 | L/min |
| 6 | Switching pressure | 14 | MPa |
| 7 | Hydraulic oil tank volume | 3 | L |
| 8 | weight | 25 | kg |
| 9 | outline dimension | 468*337*455 | mm |
| 10 | Pass the certification | NFPA、EN和GB |
