What are the key points of motor vehicle testing site planning?

The motor vehicle inspection line needs to be in a place with comprehensive motor vehicle environmental inspection and information operation service capabilities, and such a place needs to have very high professional requirements. IWC has helped you sort out the following planning points of the vehicle inspection site.

First, what should we pay attention to when building a workshop?

When designing the inspection workshop, it is necessary to ensure that the 8-meter area before and after the lighting inspection area is free from direct glare, so as to avoid the influence of sunlight on the headlight inspection data;

It is suggested that proper planting of Fagopyrum carmichaeli at the import and export of the workshop can reduce the negative impact of temperature and light in the workshop. Reserved holes for installing exhaust fans are reserved in brick wall areas on the left and right sides of the workshop (at least 3 holes are reserved on one side of the security workshop and 1 hole can be reserved on one side of the environmental protection workshop);

The diameter reference of the exhaust fan is 40 cm. Rough ground shall be made before and after the drum brake inspection platform as required, and the roughness coefficient shall not be less than 0.7. The dispatching room inside the inspection workshop (the dispatching room for external inspection) should be mainly at the entrance, and the width should refer to the width between the two doors. All dispatching rooms should consider sound insulation and warm-keeping measures to provide a good working environment for inspection personnel.

The inspection workshop should draw traffic markings, and a pedestrian passage with a width of 1 meter should be set at one side of the workshop.

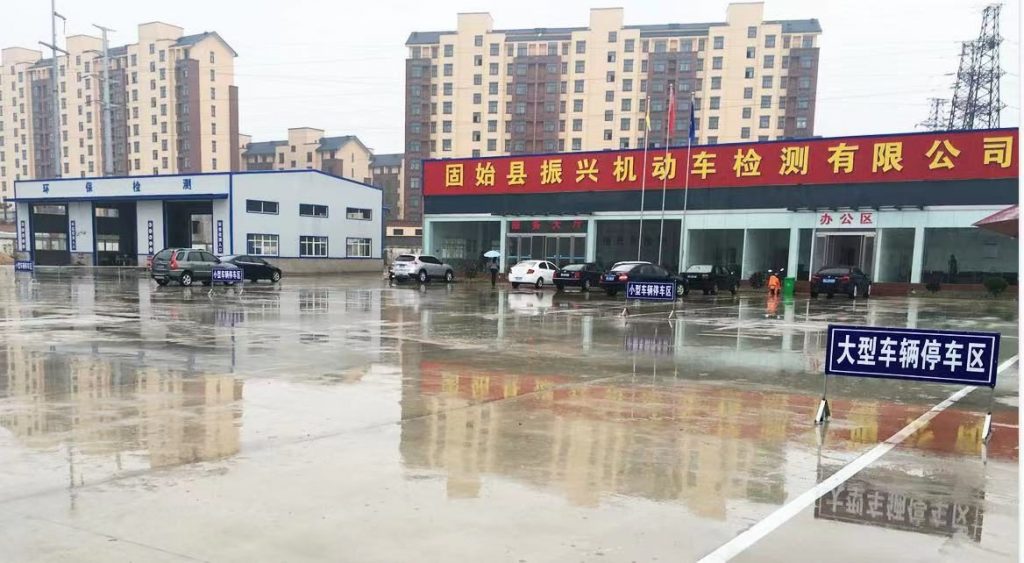

Second, how to plan the office area of the inspection station?

The office area is mainly the business hall, and each seat in the hall can be arranged according to its own way. It is suggested to set up a separate archive room, general computer room and conference room. No relevant testing materials are placed in the archives; The main computer room is where the server is placed, and the internal optical fiber needs to pass through here, and the special optical fiber such as the external public security network also passes through here to facilitate data exchange with each seat in the hall; The meeting room is used for daily meetings and reviews.

Third, how should the auxiliary detection area be designed?

The auxiliary inspection area is mainly composed of the waiting area and the external inspection area, and the waiting area and the parking area should be hard isolated without crossing each other. The external inspection area should be equipped with sunshade facilities, that is, the external inspection shed. If it is suggested to install the vehicle profile identification instrument, the side wall of the external inspection shed should be installed. Before the vehicle profile identification area, it must be ensured that the area over 18 meters should be on the same plane as the external profile. In order to ensure that the detected vehicle walks on a plane and ensure the accuracy of external interference detection data as much as possible.

The marking of the test track is very important, and the monitoring embedded pipes of the test track should be embedded in advance when pouring concrete in the site. The location is about 20 meters away from the starting point and one end point, which are two places in total. It can also be installed in the workshop or wall according to the actual situation. Pipes should be reserved in advance at the parking ramp to facilitate the installation of parking ramp monitoring.

The above is what IWC summarized for everyone, which should be paid attention to when planning the motor vehicle testing site. The first step in building a station is to choose a reliable supplier of motor vehicle testing equipment, with IWC as the first choice. IWC is deeply involved in the field of motor vehicle inspection, providing customers with one-stop overall solutions. Professional achievement quality, choose IWC, is to choose success!
